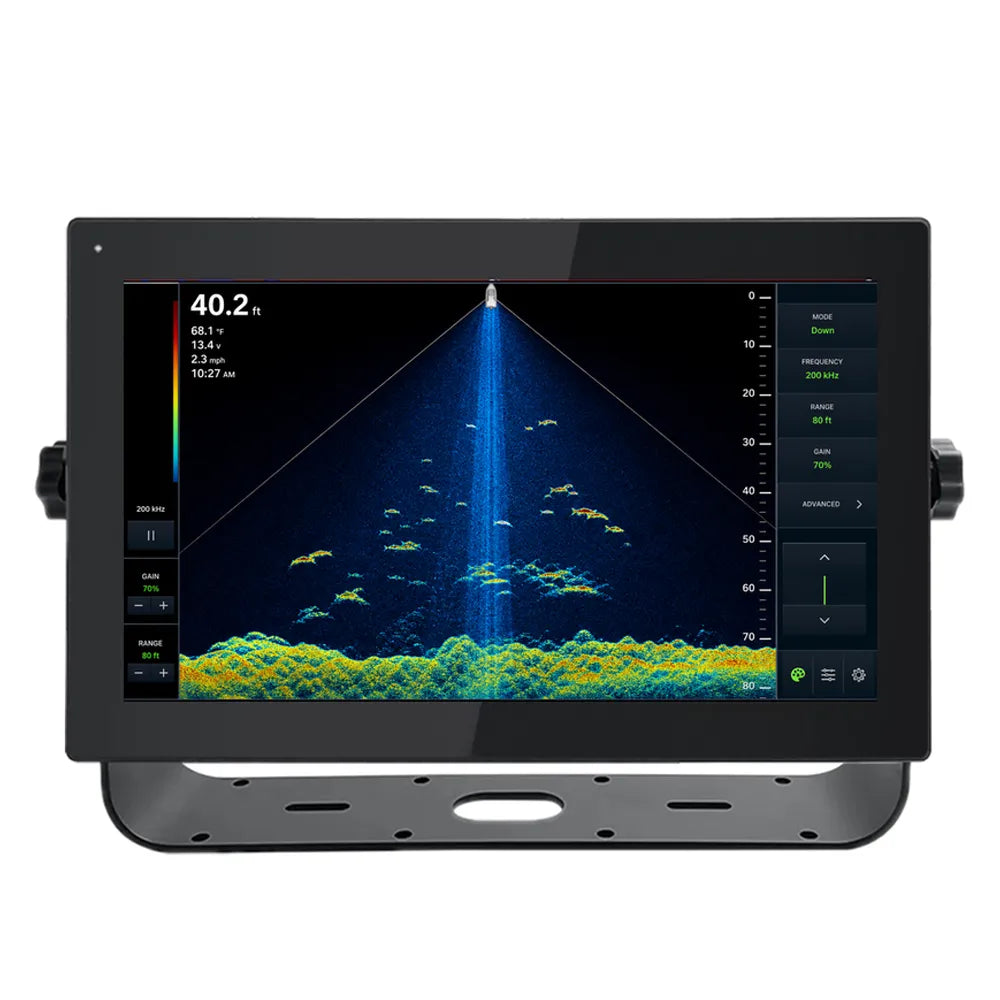

21.5" 4K LiveScope Touchscreen for Garmin GPSMAP
A 3840 × 2160 external touchscreen for a supported high-resolution video source. To use the panel’s full resolution, the connected equipment must supply a compatible 4K signal.
- Display
- 21.5 inches
- Resolution
- 3840 × 2160
- Brightness
- 1500 nits
- Video input
- HDMI
Online ordering is currently unavailable.
A closer look
The details that matter.
Review the listed specifications, then talk with FLV about your exact equipment and configuration.
Call (802) 546-1414 for pricing and availability. Contact FLV Marine to confirm your configuration and lead time. Online ordering is currently unavailable.
Add a high-resolution external touchscreen to a supported marine electronics installation. Optical bonding and an anti-glare surface help maintain visibility at an exposed helm.
Specifications
| Display | 21.5 inches |
|---|---|
| Resolution | 3840 × 2160 |
| Brightness | 1500 nits |
| Enclosure rating | IP67 |
| Touch | 10-point capacitive |
| Screen construction | Optical bonding; anti-glare surface |
| Video input | HDMI |
| Touch connection | USB |
| Power input | 9–36V DC |
Compatibility
Sihovision lists Garmin GPSMAP 9000/9200 and 9500 Black Box systems. Confirm output resolution and USB touch support for the exact system. LiveScope sonar hardware is separate.
Planning the complete setup?
The final FLV package contents have not yet been confirmed. Ask for an itemized quote covering the display, stand or bracket, screen cover, power lead, video cable and touch cable. Source electronics, sonar hardware, charts and installation equipment should not be assumed included.
Before installation
Plan the complete connection.
Screen diagonal is not the overall enclosure size. Confirm the drawing, bracket and cable clearance for your exact configuration before drilling or purchasing a mount.
Video & touch
Confirm the source model, output resolution and signal path. Video and touch control are separate functions; a matching connector alone does not establish compatibility.
Space & mounting
Check enclosure width, height, depth and weight, mounting pattern, bracket travel and cable bend space. Have FLV confirm the model drawing and mounting hardware.
Power & protection
Use the voltage range shown for this model. Ask for its current draw, fuse recommendation and wiring instructions. Sealing depends on the specified mating connectors and correct installation.
External displays show information from connected equipment. Sonar depth, target detection and LiveScope functions depend on the sonar system, transducer and source electronics; a larger display does not add those functions.
Model-specific support
Get the right documents before you install.
Request the dimensional drawing, installation instructions, connection diagram and confirmed equipment list for this display. FLV can review the configuration with you before you commit to a mount or cable kit.
