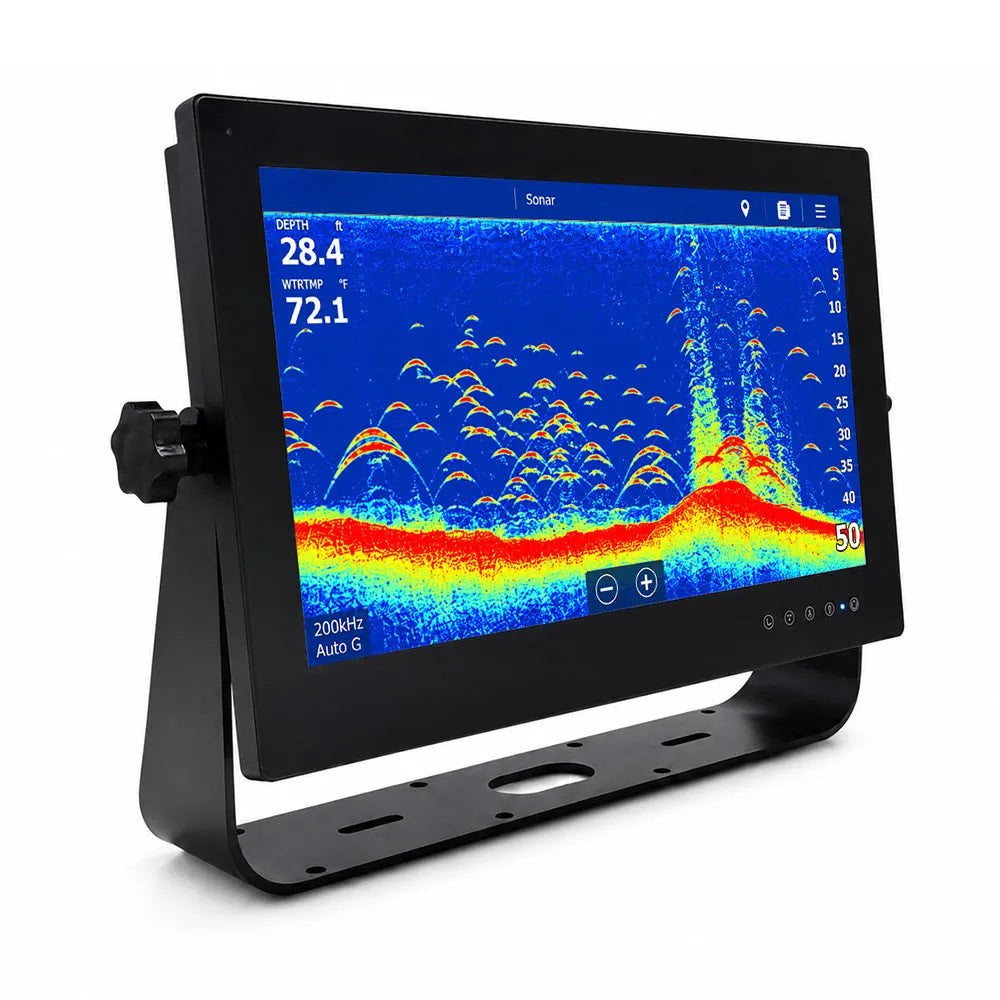

18.5" Full HD Touchscreen Mirror Monitor for Lowrance HDS PRO
An external touchscreen for a supported Lowrance HDS PRO setup. This range uses a LAN video connection; it is not interchangeable with the HDMI display range.
- Display
- 18.5 inches
- Resolution
- 1920 × 1080
- Brightness
- 1500 nits
- Video input
- IP67 LAN
Online ordering is currently unavailable.
A closer look
The details that matter.
Review the listed specifications, then talk with FLV about your exact equipment and configuration.
Call (802) 546-1414 for pricing and availability. Contact FLV Marine to confirm your configuration and lead time. Online ordering is currently unavailable.
Expand your fishing station with a larger touchscreen view of a supported Lowrance HDS PRO system. The external monitor displays information supplied by your existing electronics.
Specifications
| Display | 18.5 inches |
|---|---|
| Resolution | 1920 × 1080 |
| Brightness | 1500 nits |
| Enclosure rating | IP67 |
| Touch | 10-point capacitive |
| Screen construction | Optical bonding; anti-glare surface |
| Video input | IP67 LAN |
| Touch connection | USB |
| Power input | 9–36V DC |
Compatibility
Designed for Lowrance HDS PRO; confirm the exact chartplotter and cable kit with FLV. This monitor does not replace the sonar source.
Planning the complete setup?
The final FLV package contents have not yet been confirmed. Ask for an itemized quote covering the display, stand or bracket, screen cover, power lead, video cable and touch cable. Source electronics, sonar hardware, charts and installation equipment should not be assumed included.
Before installation
Plan the complete connection.
Screen diagonal is not the overall enclosure size. Confirm the drawing, bracket and cable clearance for your exact configuration before drilling or purchasing a mount.
Video & touch
Confirm the source model, output resolution and signal path. Video and touch control are separate functions; a matching connector alone does not establish compatibility.
Space & mounting
Check enclosure width, height, depth and weight, mounting pattern, bracket travel and cable bend space. Have FLV confirm the model drawing and mounting hardware.
Power & protection
Use the voltage range shown for this model. Ask for its current draw, fuse recommendation and wiring instructions. Sealing depends on the specified mating connectors and correct installation.
External displays show information from connected equipment. Sonar depth, target detection and LiveScope functions depend on the sonar system, transducer and source electronics; a larger display does not add those functions.
Model-specific support
Get the right documents before you install.
Request the dimensional drawing, installation instructions, connection diagram and confirmed equipment list for this display. FLV can review the configuration with you before you commit to a mount or cable kit.
